Architecture Overview

TernoDBI is designed as a Database Interface Layer that sits between your AI Agents and your physical data warehouses. It solves the "last mile" problem of letting LLMs query databases securely.

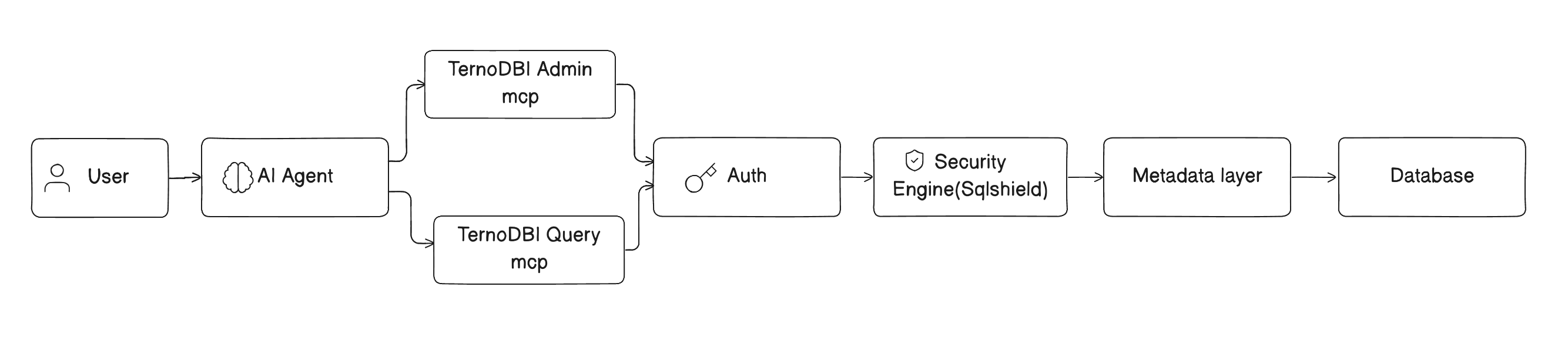

System Diagram

TernoDBI Architecture

Core Components

1. The MCP Layer

TernoDBI exposes two distinct servers via the Model Context Protocol:

  • Query Server: Read-only. Exposes tools like list_tables, list_table_columns, and execute_query. Designed for safety.
  • Admin Server: Write-access. Exposes tools like rename_table, update_table_description, and validate_connection. Designed for human-in-the-loop curation.

2. SQLShield

The security engine. It parses every incoming SQL query into an Abstract Syntax Tree (AST) using sqlglot.

  • Validation: Rejects mutations (INSERT, DROP, ALTER).
  • Transformation: Can rewrite queries (e.g., forcing LIMIT, applying Row Level Security).
  • Dialect Translation: Converts generic SQL into database-specific dialects (e.g., handling BigQuery backticks vs Postgres quotes).

3. Unified Connector System

A factory-based abstraction over SQLAlchemy and native drivers.

  • Single Interface: Application code (and Agents) interact with a single Connector interface.
  • Complexity Handling: TernoDBI handles the complexity of connection pooling, cursor management, and type conversion for each backend.

4. Service Token Authentication

A custom authentication system designed for agents.

  • Scopes: Tokens can be global or restricted to specific Datasource IDs.
  • Expiration: Tokens can be short-lived (e.g., ephemeral tokens for a specific chat session).
  • Audit: Usage is tracked per-token.
